Data

General

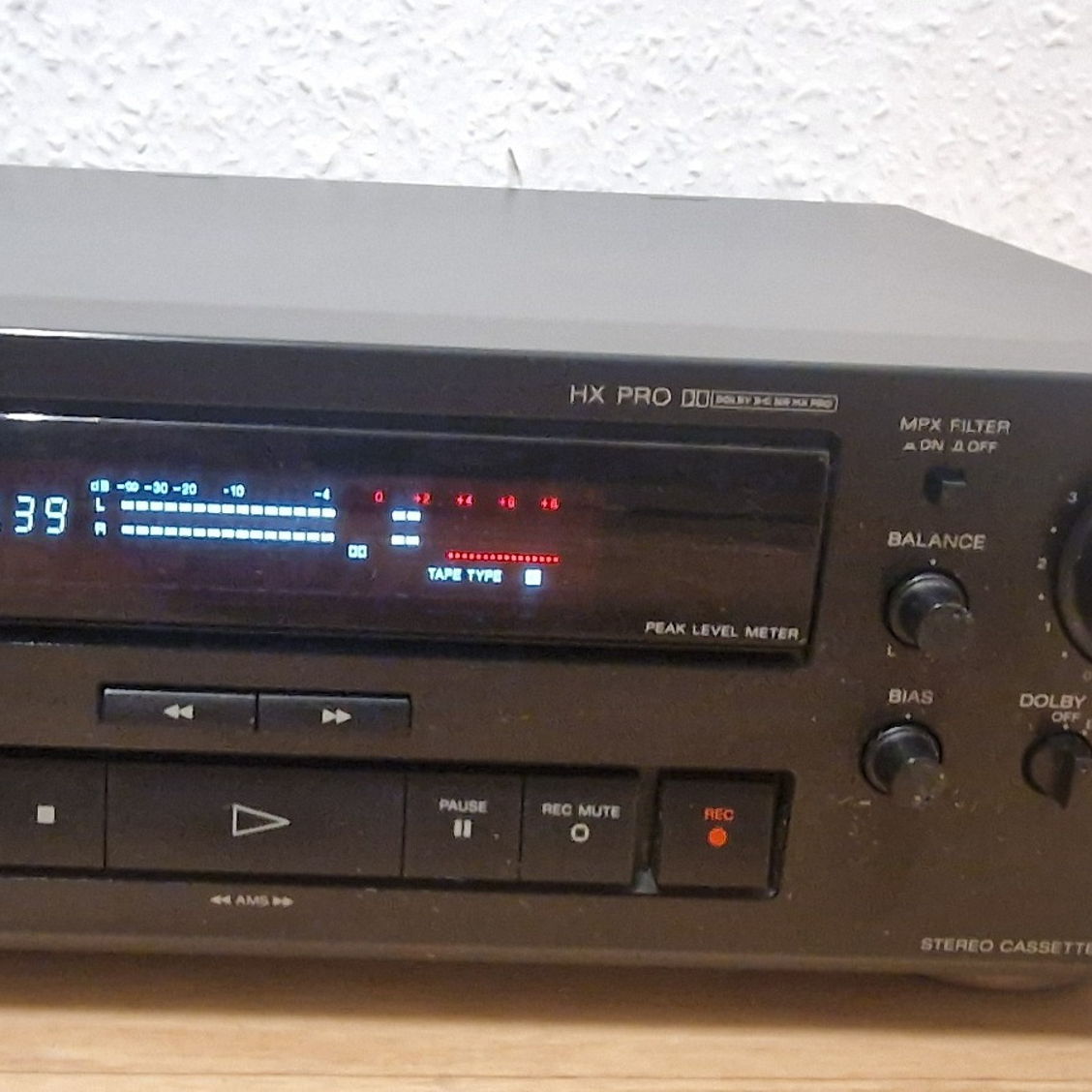

    Manufacturer: Sony
    Model: TC-K 470
    Type: Cassette tape deck
    Years of manufacture: 1991 - 1992
    Made in: Japan
    Colour: Black
    Remote control: yes (not included)
    Power consumption: 17 W
    Dimensions: approx. 430 x 123 x 300 mm (W x H x D)
    Weight: approx. 4.5 kg
    New price approx.: 500 DM

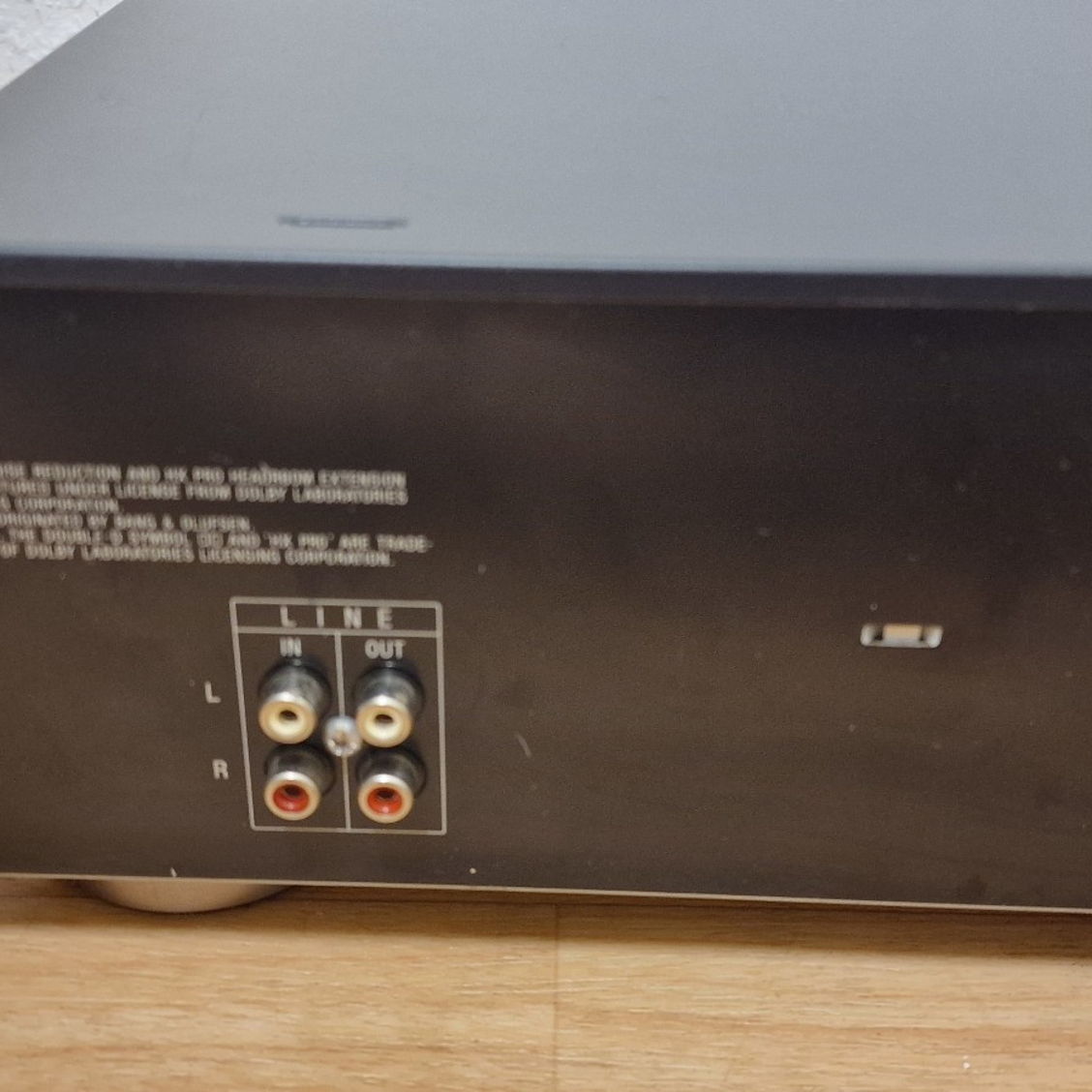

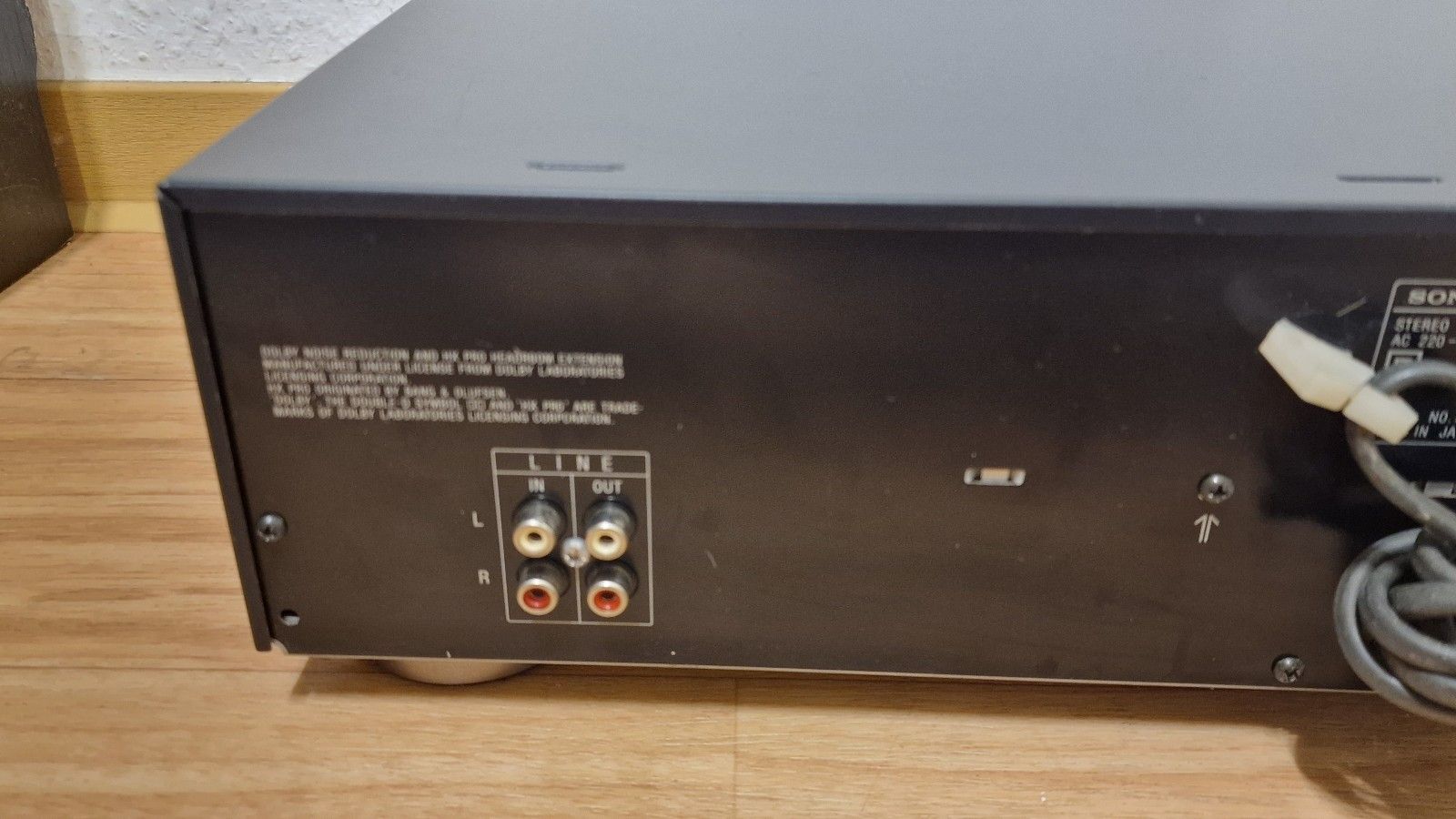

Connections

    Number of inputs: 1
        Line in (Cinch)
    Number of outputs: 2
        Line out (Cinch)
        Headphones (stereo jack)


Technical data

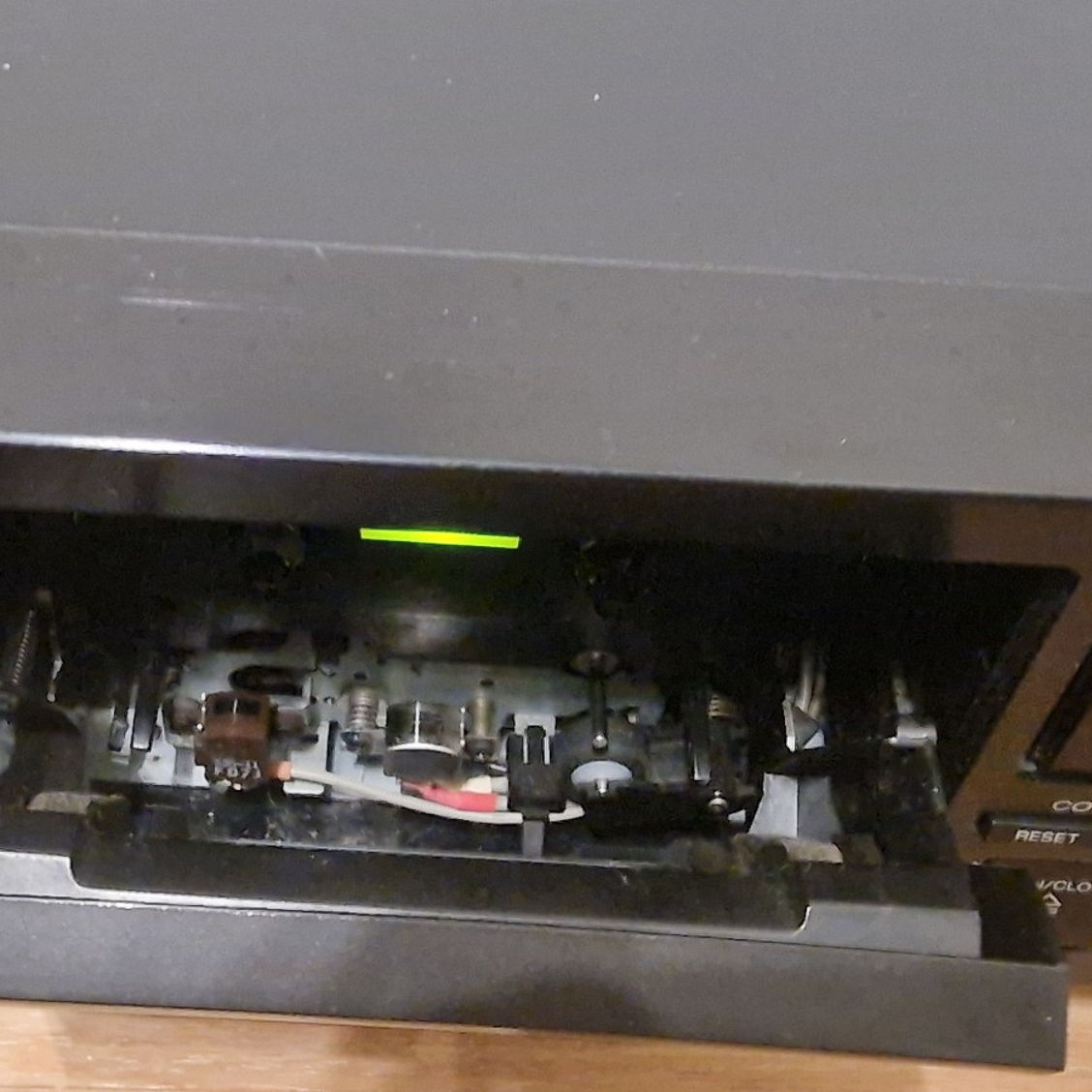

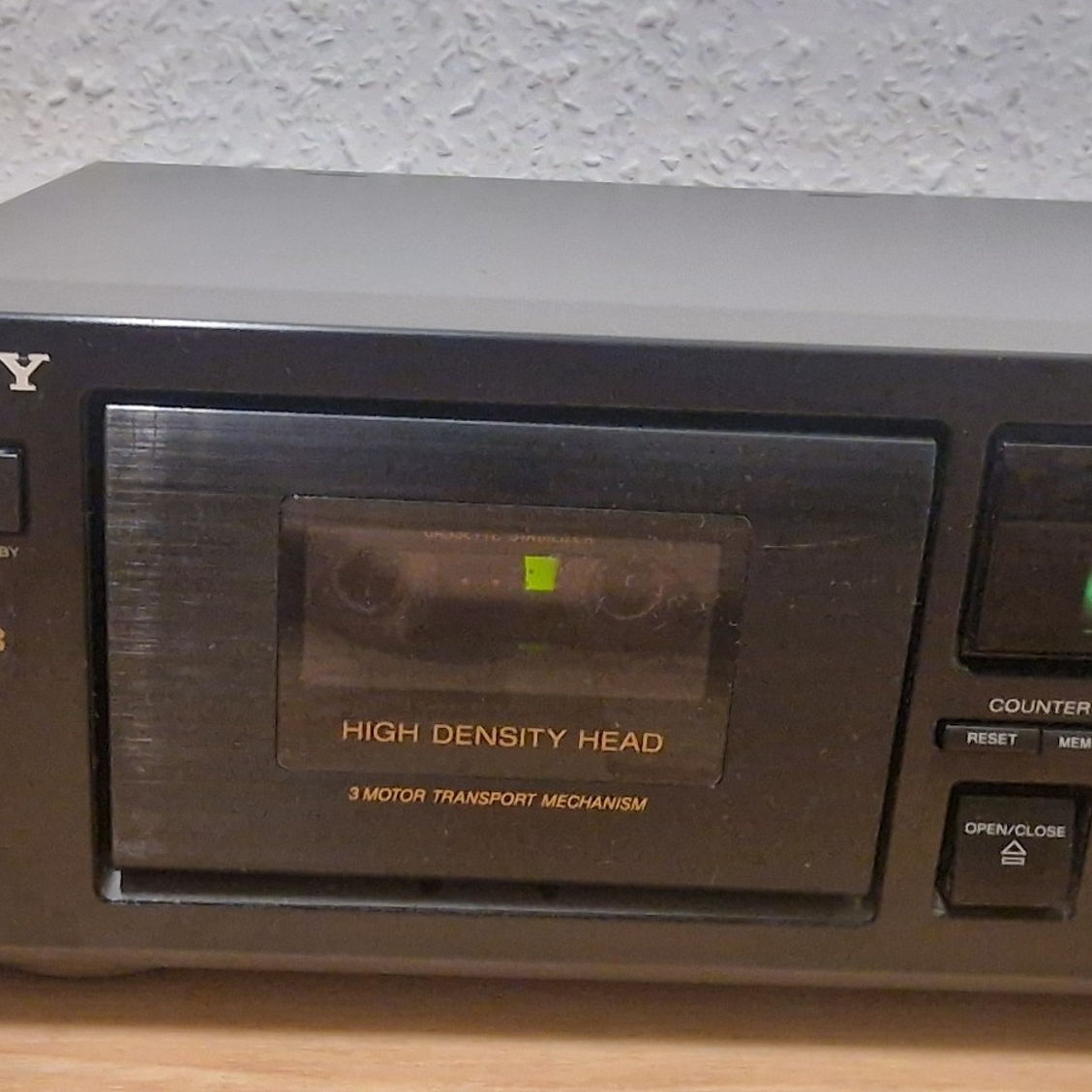

    Audio heads: 2
    Motors: 3
    Wow and flutter:
        +-0.09% W.PEAK (IEC)
        0.06% WRMS (NAB)
        +-0.16% W.PEAK (DIN)
    Tape types: Normal (Type I), CrO2 (Type II), Pure iron (Type IV)
    Frequency response:
        Type IV cassette (Sony METAL-S): 30 - 18,000 Hz (+-3dB, IEC)
        Type II cassette (Sony UX-S): 30 - 17,000 Hz (+-3dB, IEC)
        Type I cassette (Sony HF-S): 30 - 15,000 Hz (+-3dB, IEC)
    Distortion factor: 1.0% (with Sony METAL-S cassette)
    Signal-to-noise ratio:
        Type IV (Sony METAL-S): 59 dB (Dolby off), 67 dB (Dolby B), 74 dB (Dolby C)
        Type II (Sony UX-S): 58 dB (Dolby off), 66 dB (Dolby B), 73 dB (Dolby C)
        Type I (Sony HF-S): 56 dB (Dolby off), 64 dB (Dolby B), 71 dB (Dolby C)
    Auto-reverse: no
    Title search: yes (AMS)
    Dolby: B and C
    MPX filter: yes
    Fader:
    Pitch control:
    CD synchro recording: no

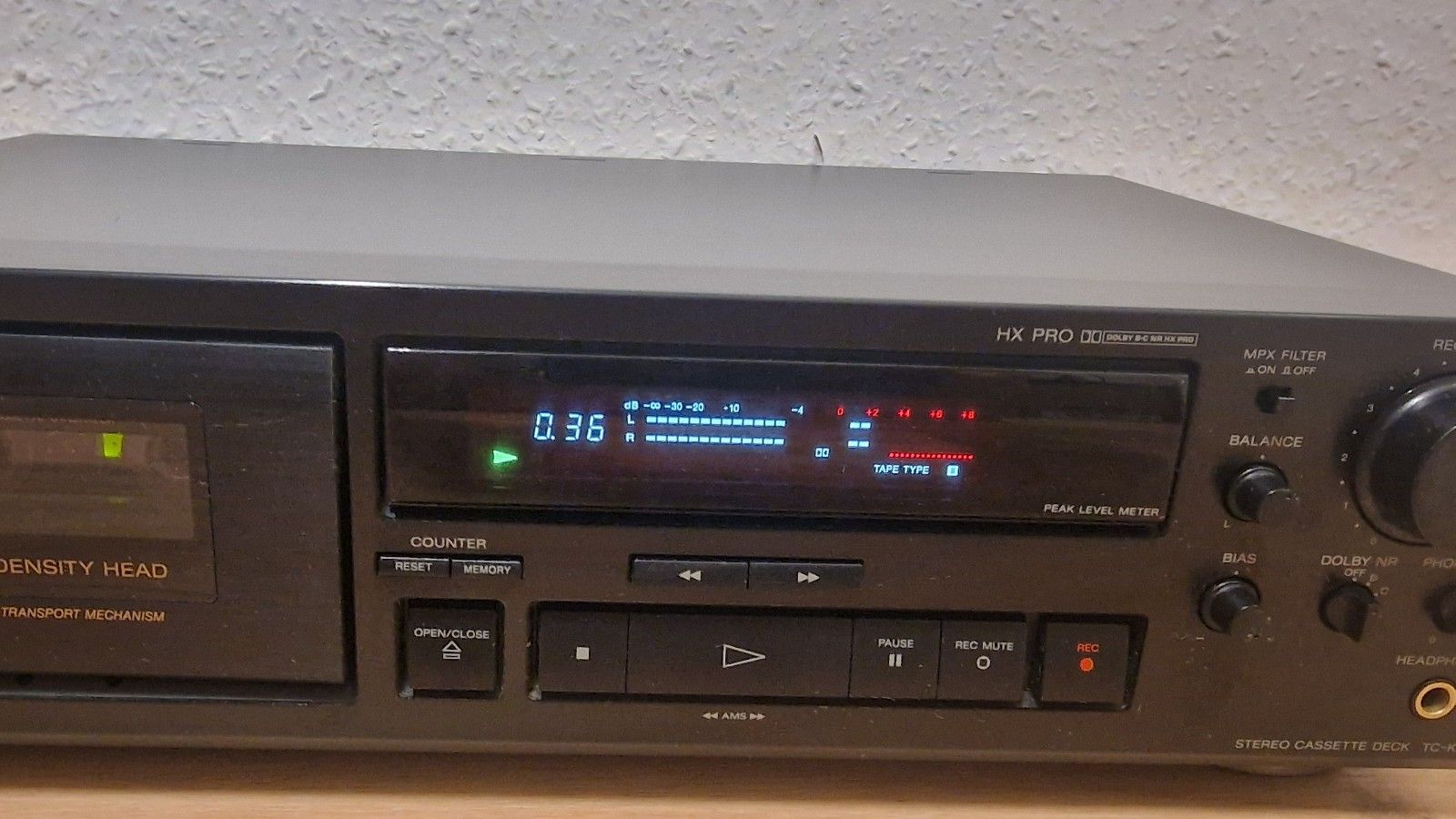

Special features

    Bias (pre-magnetization) control
    Headphone level control (Phone Level)
    Rec-mute function (inserting blank spaces)
    Memory function for desired tape position
    Automatic tape type display
    Balance control
    Digital tape counter

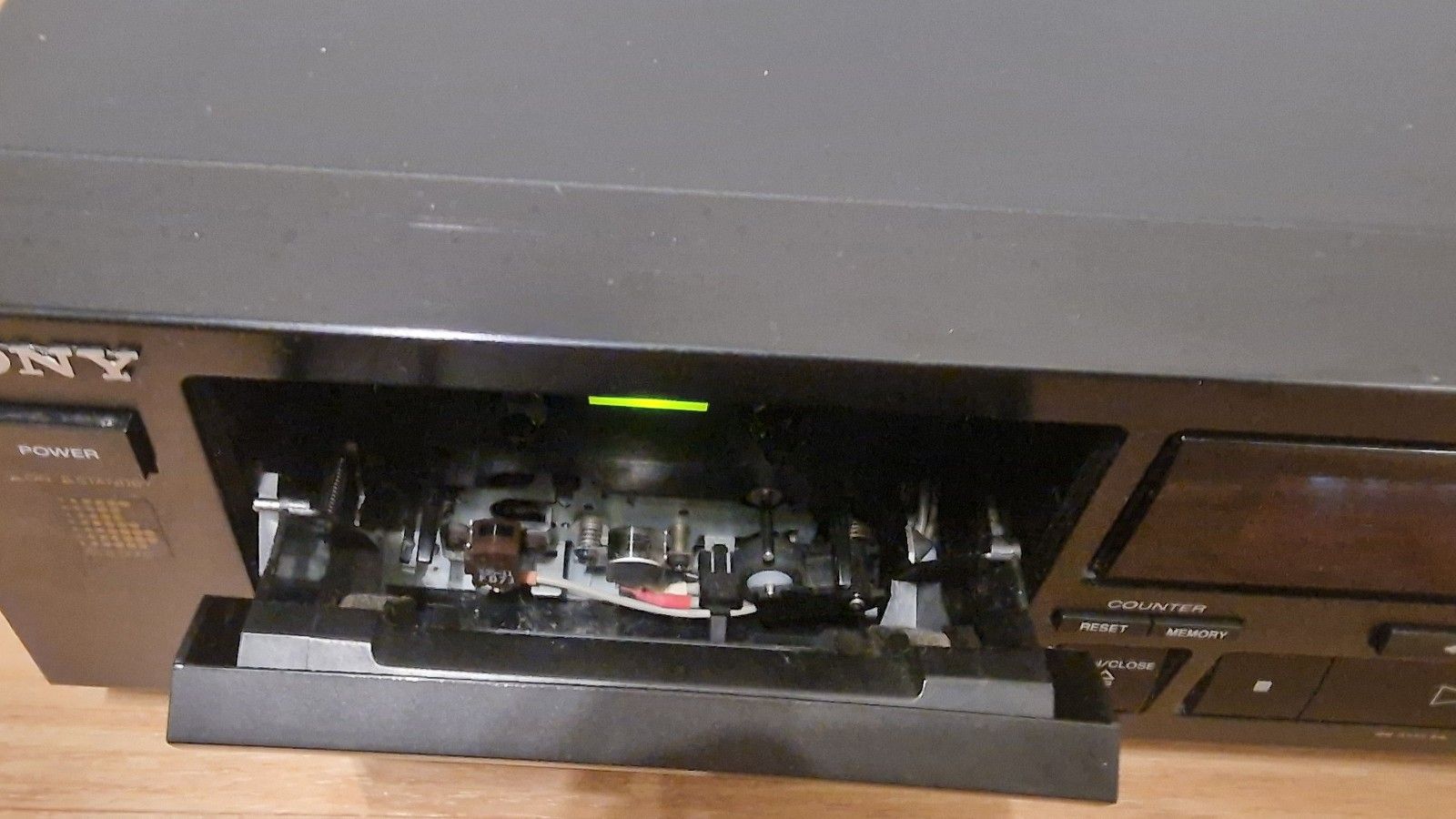

    Motor-driven cassette compartment
